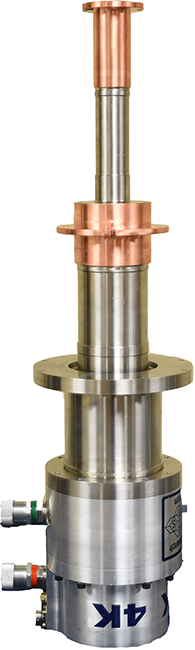

The DE-215 is our largest and most powerful closed cycle cryocooler. This system is ideal when there are high heat loads and when fast cooldowns need to occur.
ARS manufactures both the cryocooler and the laboratory interface allowing for seamless trouble-free integration of our laboratory systems.
Our DE-215 cryocoolers are typically equipped with a bolt-on stainless steel instrumentation skirt with an ISO-160 flange (DE-215E).
The DE-215F is just the bare cold head geared towards OEMs and system builders who prefer to build their own custom laboratory interface.
The ARS manufactured DE-215B is a true UHV cold head (10-11 Torr) where all of the rubber o-ring seals have been replaced with welded joints and metal seals.
Options & Upgrades
Displex® pneumatically driven Gifford-McMahon closed cycle cryocooler designed for low sample vibrations
4 K cold head (1.5 W @ 4.2 K)
Simple efficient design with only 2 moving components for high reliability
Easy field maintenance
Low life cycle cost
Water cooled ARS-10HW compressor for quiet and clean operation
Cold head (DE-215S)
2 helium hoses
