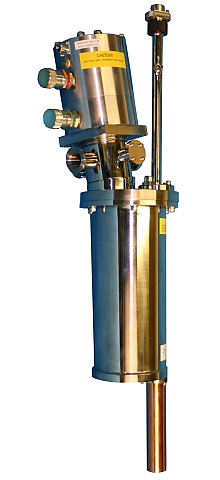

CS202-DMX-19-SCC
The CS202F-DMX-19-SCC is a low cost top loading cryostat. This sample in vapor system is ideally suited for samples that are not thermally conductive, such as ceramics and glass. Additionally, because the sample space is no longer under vacuum, the samples can be changed and cooled in rapid succession.
Originally called the Superconductor Characterization Cryostat (SCC), this system has a very small tail and nonmagnetic material construction, making it a great upgrade for AC susceptibility and VSM systems.
Applications
- AC susceptibility experiments
- Resistivity
- Vibrating sample magnetometer (VSM)
- Hall probe experiments
- Non-optical
Features
Typical Configuration
Options & Upgrades
- Cryogen free GM cooler
- Fast sample change
- Helium vapor cooling
- VSM adapter option
- Compact, efficient design
- Welded stainless steel construction
- Fully customizable
- Cold head (DE-202AF)
- Compressor (ARS-4HW)
- 2 helium hoses
- Sample in vapor vacuum interface
- Quick change sample stick
- Instrumentation for temperature measurement and control:
- 10 pin hermetic feedthrough
- 36 ohm thermofoil heater
- Silicon diode sensor curve matched to (± 0.5 K) for control
- Calibrated silicon diode sensor (±12 mK) with 4 in. free length for accurate sample measurement
- Wiring for electrical experiments:
- 19 pin hermetic feedthrough
- 4 copper wires
- Temperature controller
- VSM adapter
- 4 K cold head (0.1 W @ 4.2 K) (not recommended)
- 5.5 K cold head (1 W @ 10 K) (not recommended)
- Turbo upgrade for faster cooldown times
- 450 K high temperature interface
- 800 K high temperature interface
- Custom wiring configurations (please contact our sales staff)
- Custom temperature sensor configuration (please contact our sales staff)
