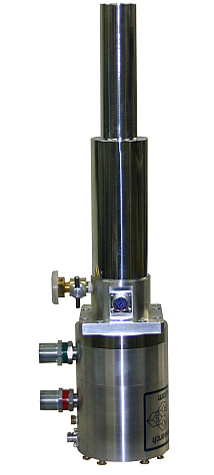

CS202-DMX-3
The CS202E-DMX-3 has a closed vacuum shroud and radiation shield which allows for maximum cooling power for transport experiments. The non-optical vacuum shroud comes in a variety of options to accommodate narrow gaps, extensions, and large sample spaces. All of these variations are available in stainless steel or aluminum.
The CS202E-DMX-3 is powered by our DE-202 series closed cycle cryocooler. This liquid helium-free cryostat uses a pneumatically driven Gifford-McMahon cycle to cool the sample.
Applications
- Resistivity/Hall probe experiments
- DLTS
- Thermal, electrical and magnetic susceptibility
- Heat capacitance
- Seebeck effect
Features
Typical Configuration
Options & Upgrades
- Cryogen free
- Low cost aluminum construction (also available in stainless steel)
- Fully customizable to allow for extensions as well as larger sample spaces
- Cold head (DE-202AE)
- Compressor (ARS-4HW)
- 2 helium hoses
- Aluminum or stainless steel vacuum shroud for electrical experiments (DMX-3)
- Aluminum radiation shield
- Instrumentation for temperature measurement and control:
- 10 pin hermetic feedthrough
- 36 ohm thermofoil heater
- Silicon diode sensor curve matched to (± 0.5 K) for control
- Calibrated silicon diode sensor (±12 mK) with 4 in. free length for accurate sample measurement
- Wiring for electrical experiments:
- 10 pin hermetic feedthrough
- 4 copper wires
- Sample holder for electrical experiments
- Temperature controller
- 4 K cold head (0.1 W @ 4.2 K)
- 5.5 K cold head (1 W @ 10 K)
- Turbo upgrade for faster cooldown times
- 450 K high temperature interface
- 800 K high temperature interface
- Custom temperature sensor configuration (please contact our sales staff)
- Custom wiring configurations (please contact our sales staff)
- Sample holder upgrades (custom sample holders available)
