CS210-GMX-19N

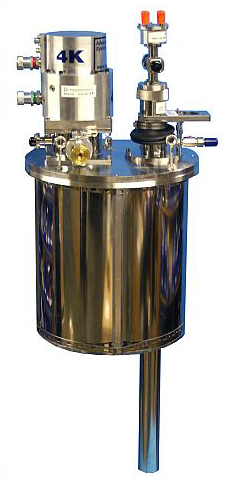

The Omniplex: CS210F-GMX-19N is a top loading non-optical cryostat with the ARS manufactured DE-210 cold head for the highest cooling power and fast cooldown.

These sample in vapor closed cycle cryostats feature fast sample change and quick cooldown times. The helium vapor is particularly useful for cooling samples that do not conduct heat well.

The Omniplex: CS210F-GMX-19N comes in a variety of sample tube diameters and length and is well suited for electrical and magnetic studies. A variety of options allow this system to be customized to fit the researcher's needs, including custom tail pieces, load-lock gate valves and low vibration interfaces.

The sample stick can use any of the standard ARS sample holders as well as receive a second set of temperature control instrumentation for fine tuning of the sample temperature.

Applications

• Resistivity
• Vibrating sample magnetometer (VSM)
• AC susceptibility experiments
• Hall probe experiments
• Non-optical

Features

Typical Configuration

Options & Upgrades

• Cryogen free GM cooler
• Top loading sample in vapor
• Fast sample change
• VSM adapter option
• Welded stainless steel construction
• Multiple tail piece adaptations
• Fully customizable

• Cold head (DE-210AF)
• Compressor (ARS-10HW)
• 2 helium hoses
• Omniplex, sample in vapor vacuum chamber
• OFHC copper radiation shield
• Tail piece
• Instrumentation for temperature measurement and control:
  • 10 pin hermetic feedthrough
  • 50 ohm thermofoil heater
  • Silicon diode sensor curve matched to (± 0.5 K) for control
  • Calibrated silicon diode sensor (±12 mK) with 4-in. free length for accurate sample measurement
• Wiring for electrical experiments:
  • 10 pin hermetic feedthrough
  • 4 copper wires
• Sample holder for optical and electrical experiments
• Temperature controller

• 4 K cold head (0.8 W @ 4.2 K)
• Turbo upgrade for faster cooldown times
• Thinned aluminum tailpiece for neutron diffraction
• VSM adapter
• Load-lock gate valve
• 450 K high temperature interface
• 800 K high temperature interface
• Second set of temperature control instrumentation for fine sample temperature control
• Custom temperature sensor configuration (please contact our sales staff)
• Custom wiring configurations (please contact our sales staff)
• Window material upgrades (custom materials available)
• Sample holder upgrades (custom sample holders available)
