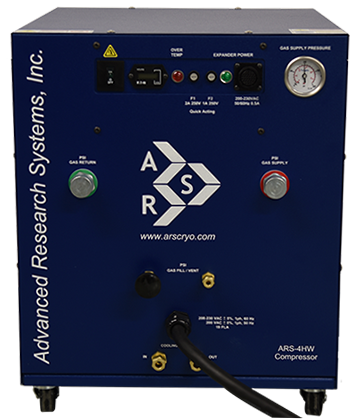

ARS-4HW Compressor




Specfications


Compressor Model ARS-4HW
  Frequency 60 Hz 50 Hz
Standard Voltage Min 208 V 190 V
  Max 230 V 210 V
Transformer Options 10%   220 V, 230 V
  15%   240 V
Power Usage Singe Phase 3.6 kW 3.0 kW
Refrigerant Gas 99.999% helium gas,
pre-charged
Noise Level 60 dBA
Ambient Temperature 12 - 40 C (54-104 F)
Cooling Water Consumption 1.5 L / min (0.4 Gal. / min)
  Temperature 10 - 35 C (50-95 F)
  Connection 3/8 in. Swagelok fitting

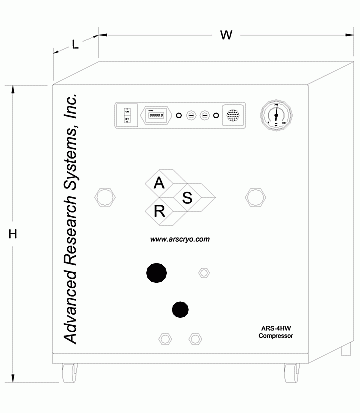

Dimensions L 483 mm (19 in)
  W 434 mm (17.1 in)
  H 516 mm (20.3 in)
Weight Compressor 72 kg (160 lbs)
Typical Maintenance Cycle 30,000 hours
Water Recirculation Option CoolPac compatible
