Superconducting Magnet Probe Station

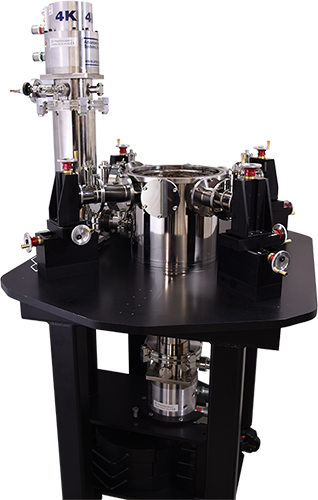

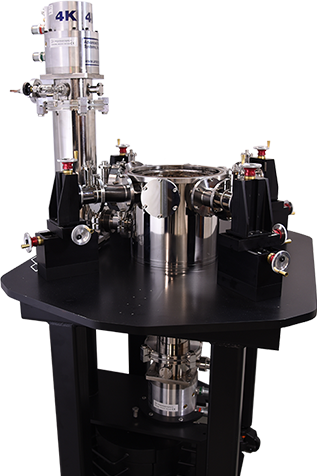

The ARS Superconducting Magnet Closed Cycle Cryogenic Probe Station, PS-CC-SCM, is ideal for the study of magneto-optical and magneto-electrical properties in variety of experiments. It features a 6 T Vertical Superconducting Magnetic Field allowing probing at the sample up to 4 T.
ARS manufactures both the cryocooler and the probe station. This integrated approach ensures consistent performance and also facilitates diagnostics and service of the integrated system.
Applications
Magnetic properties
Microwave properties
DC, RF properties
MEMS
Nanoscale electronics
Superconductivity
Electrical and optical properties of nano circuits
Quantum dots and wires
Single electron and low current physics
Non-destructive device testing
Typical Setup
2x DE-210 closed cycle cryocoolers with 1.1 W cooling power at 4.2K
Cryogen-Free Superconducting Magnet
4 DC probe arms
7:1 or 12.5:1 Zoom Microscope with coaxial light
Rotary and Turbo Pumping Systems Available
Features
Cryogen-free operation to <5 K
6 T vertical field superconducting magnet for up to 4 T field at the sample
DC, RF, or Fiber Optic Probe Options
Easy operation
Allows unsupervised cooldown
High vacuum
Fully customizable
Options & Upgrades
Probe arms: up to 6
DC, RF, or Fiber Optic Probe Options
Temperature:
Sample Plate:
Nanopositioner mounting stages
Ring Magnets
Sensors and Wiring:
Custom wiring configurations available
Custom temperature sensor configurations available
Cernox sensor upgrades
Windows and WD
Custom window materials
Anti-reflective window coatings
Recessed windows or in-vacuum objectives for low working distance
