Laboratory Cryostats

Beyond the Solvay Cryocooler, our “dry” laboratory cryostats feature modular laboratory interfaces that include an insulating vacuum enclosure with feedthroughs and an actively cooled radiation shield for intercepting blackbody radiation.

These laboratory interfaces are optimized for a variety of applications and measurement types:


A full closed cycle cryocooling setup, including a pneumatic Gifford McMahon (GM) cryocooler with temperature sensors, a water-cooled helium compressor, helium hoses, a compact vacuum shroud, and a radiation shield.

A complete closed-cycle cryostat system, including a helium compressor (right), Solvay “dry” cryocooler (middle), vacuum shroud (middle left), radiation shield (left), and two helium hoses (bottom).

X-1 Optical Spectroscopy

Our most versatile benchtop optical cryostat featuring up to five perpendicular windows, the X-1 series is a laboratory workhorse used for optical spectroscopy including Raman, Photoluminescence, Spectrofluorometry, FTIR and more.

X-1 cryostats are modularly outfitted with a wide range of optical windows, instrumentation, and sample holders to meet the needs of the experiment, and can be integrated into various benchtop spectrometers.

Model Base Temperature Windows Sample Space
DMX-1SS 4.5 K | 5.5 K | 9 K Five; Ø32 mm Ø36 x 39 mm Product Page
FMX-1SS 4 K | 5.5 K | 9K Four; Ø32 mm Ø41 x 39 mm Product Page
GMX-1SS 3 K | 9 K Four; Ø32 mm Ø79 x 49 mm Product Page

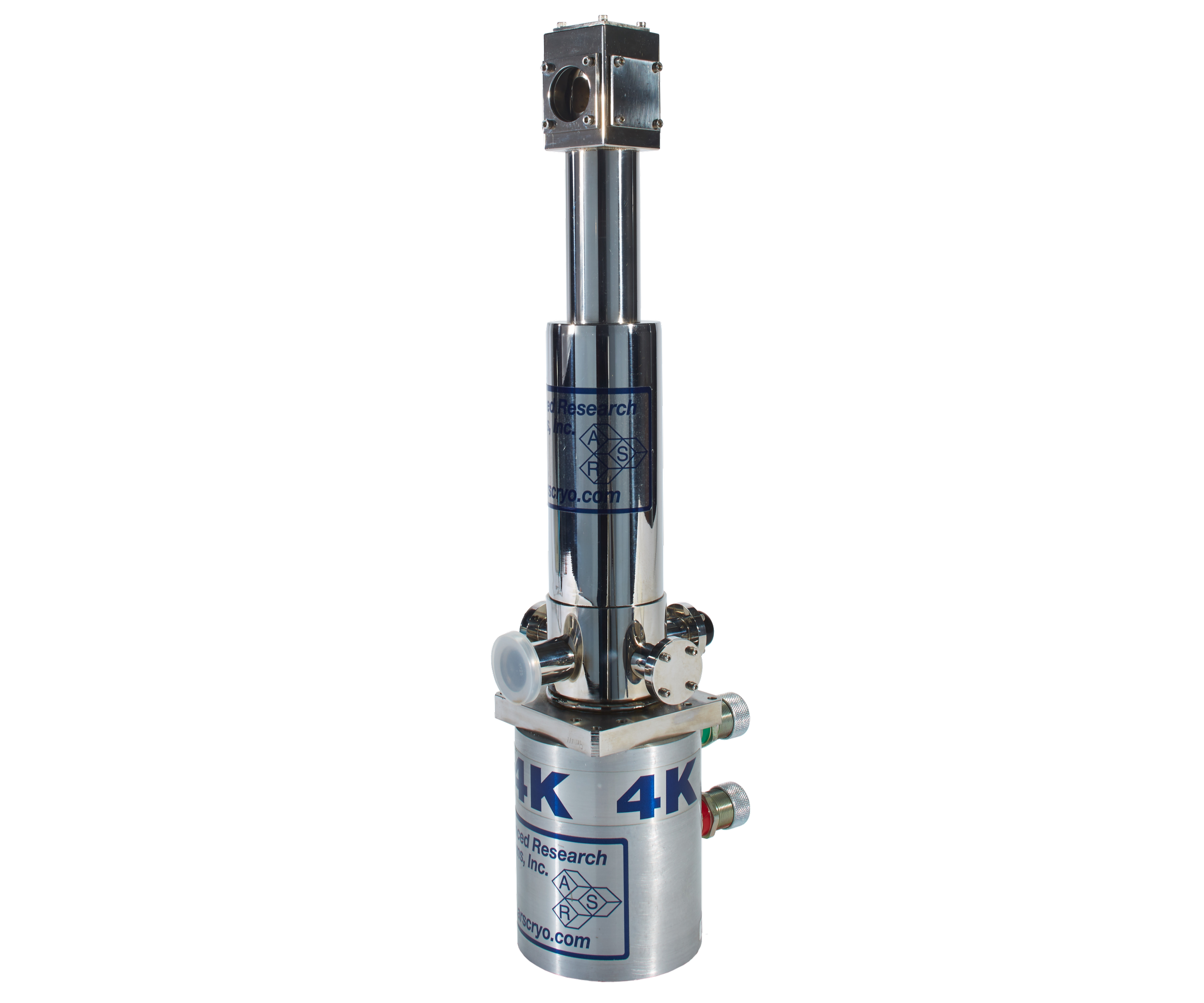

A closed cycle cryostat for optical spectroscopy, with a compact stainless-steel vacuum chamber and feedthrough ports

Aligned with the optical windows at the top, a sample holder is mounted to the cryocooler’s second cooling stage inside the vacuum shroud.



X-3 Transport

When optical access is not required, the X-3 series are fully enclosed to limit parasitic heat loads. Frequent applications include Hall Effect, Superconductivity, Magnetotransport and Resistivity measurements of packaged devices at low temperatures.

These cryostats are built with a variety of instrumentation such as multipin feedthroughs with DC lines, low noise BNC feedthroughs with micro-coaxial cables, high frequency (up to 18 GHz) RF cable assemblies, and semi-rigid cables. Sample holders include LCC and DIP Chip Carriers, and wire-bonding chucks specifically designed for low temperature performance.

The narrow variants (X-3-1) are nonmagnetic and designed for placement into electromagnets and superconducting magnets which are also available from ARS. Sample tails are customizable as small as Ø19mm to maximize field strength.

Model Base Temperature Outer Diameter Sample Space
DMX-3 4.5 K | 5.5 K | 9 K Ø70 mm Ø48 x 84 mm Product Page
DMX-3-1 4.5 K | 5.5 K | 9 K Ø45 mm Ø36 x 39 mm Product Page
FMX-3 4 K | 5.5 K | 9K Ø83 mm Ø79 x 49 mm Product Page
FMX-3-1 4 K | 5.5 K | 9 K Ø51 mm Ø41 x 45 mm
GMX-3 3 K | 9 K Ø151 mm Ø137 x 205 mm
A non-optical closed cycle cryostat used for transport measurements

The X-3 Series cryostat is designed for measurements that do not require optical access.



X-12 Magneto-Optics

For magneto-optical measurements, our narrow-gap cryostats combine optical access with a sample chamber suitably sized for placement between electromagnet poles for applications like Hall Effect and MOKE.

The laboratory interface is rotatable, is composed of non-ferromagnetic materials and uses magnetic field independent instrumentation.

Model Base Temperature Outer Width Sample Space
DMX-12 4.5 K | 5.5 K | 9 K 41 mm Ø28 x 30 mm Product Page
DMX-12B 4.5 K | 5.5 K | 9 K 35 mm Ø27 x 30 mm Product Page
FMX-12 4.0 K | 5.5 K | 9 K 50 mm Ø36 x 36 mm

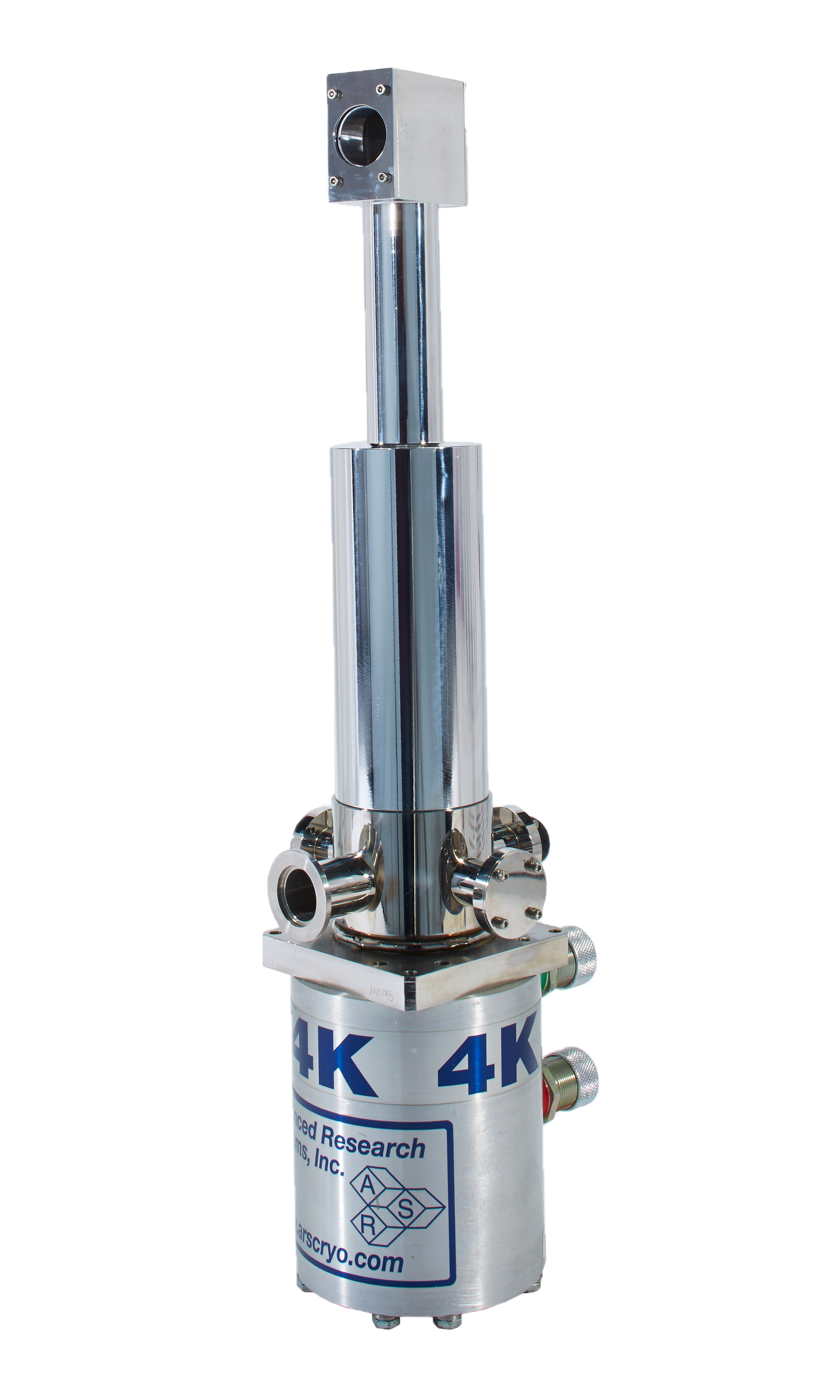

A narrow-tail closed cycle cryostat for placement into high magnetic fields

The narrow optical block of the X-12 Series is designed to interface with various magnets.



X-4 Optical Spectroscopy for Large Samples

Our X-4 Series is a larger version of our X-1 cryostats, offering a spacious sample space and large diameter optical windows for similar spectroscopy measurements.

These cryostats can be used for mounting large samples like 2” wafers, or large equipment like Diamond Anvil Cells (DAC).

Model Base Temperature Windows Sample Space
DMX-4 4.5 K | 5.5 K | 9 K Four; Ø38 mm Ø47 x 90 mm Product Page
FMX-4 4 K | 5.5 K | 9K Four; Ø38 mm Ø60 x 90 mm Product Page
A closed cycle cryostat with large optical windows for general optical measurements and spectroscopy

Large optical apertures give excellent optical access on the X-4 Series cryostats.



X-19 Omniplex, Sample in Vapor

Instead of sharing the same insulating vacuum space as the cryocooler like our other cryostats, the sample is placed in a secondary chamber filled with cryocooled helium vapor. This convective cooling is ideal for samples of poor thermal conductivity and allows rapid sample exchange.

The X-19 Omniplex Series is built in a range of chamber sizes both with and without optical access for Spectroscopy, Neutron Scattering, Mössbauer, and X-Ray Diffraction experiments. They allow for fast sample change; the typical turnaround time is about 30 minutes.

Model Base Temperature Windows Sample Space
FMX-19OP 6 K | 7.5 K | 11 K Four; Ø51 mm Ø36 mm | Ø 49 mm Product Page
FMX-19N 6 K | 7.5 K | 11 K None Ø24 mm | Ø36 mm | Ø 49 mm Product Page
GMX-19OP 1.7 K | 10 K Four; Ø51 mm Ø36 mm | Ø 49 mm Product Page
GMX-19N 1.7 K | 10 K None Ø24 mm | Ø36 mm | Ø 49 mm | Ø74 mm | Ø100 mm Product Page
A closed cycle cryostat with a helium vapor sample environment for optical or non-optical measurements

The cryocooler at the top-left cryogenically cools the vertical helium vapor chamber that passes into the optical block. Sample are mounted on a removable sample rod and placed in the vapor space.
