LT3-WMX-1SS

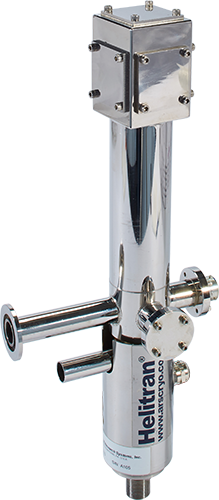

The LT3-WMX-1SS offers a wide range of flexibility at a reasonable cost.

This high-performance system offers an all stainless steel constructed vacuum shroud along with a welded stainless steel instrumentation skirt. This system is capable of achieving vacuum levels of 10-7 Torr with an appropriate vacuum system. The nickel plated copper radiation shield provides low emissivity which is ideal for low temperature experiments.


Applications

  • Optical- UV, VIS, IR

  • Raman

  • FTIR

  • Photoluminescence

  • Deep level transient spectroscopy (DLTS)

  • Photoinduced current transient spectroscopy (PICTS)

  • Electro-optical

  • Magneto-optical

  • Resistivity

  • Hall experiments

  • Diamond anvil cell

  • Dual inline package (DIP)

  • Liquid samples

  • Non-optical

  • Thermal

  • Electrical and magnetic susceptibility

  • Matrix isolation

  • Mossbauer

  • Low vibration

Options & Upgrades

Features

  • Liquid helium flow

  • Welded stainless steel construction

  • Large, clear view optical windows (1.25 in.)

  • Large sample viewing angle for optical collection (F/0.8)

  • Matrix heat exchanger

  • Co-axial shield flow

  • 4 K liquid helium operation (1.7 K with pumping)

  • 0.7 LL/hr liquid helium consumption at 4.2 K

  • Liquid nitrogen compatible (77 K operation)

  • Precision flow control

  • Fully customizable

 Typical Configuration

  • Cold head (LT3-WMX-1)

  • Co-axial shield flow liquid helium transfer line

  • Stainless steel instrumentation skirt

  • Dewar adapter

  • Flow meter panel for helium flow control and optimization

  • Welded stainless steel vacuum shroud for optical and electrical experiments (WMX-1SS)

  • Nickel plated OFHC copper radiation shield

  • 2 high purity quartz windows

  • Instrumentation for temperature measurement and control:

    • 10 pin hermetic feedthrough

    • 36 ohm thermofoil heater

    • Silicon diode sensor curve matched to (± 0.5 K) for control

    • Calibrated silicon diode sensor (±12 mK) with 4 in. free length for accurate sample measurement

  • Wiring for electrical experiments:

    • 10 pin hermetic feedthrough

    • 4 copper wires

  • Sample holder for optical and electrical experiments

  • Temperature controller
