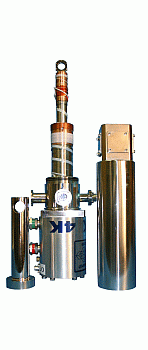

CS204-FMX-1SS

The CS204-FMX-1SS is our standard intermediate cooling power cryostat for optical and electrical measurements. This high-performance system offers an all stainless steel constructed vacuum shroud along with a welded stainless steel instrumentation skirt. This system is capable of achieving vacuum levels of 10-7 Torr with an appropriate vacuum system. The nickel-plated copper radiation shield provides low emissivity which is ideal for low temperature experiments.

The CS204-FMX-1SS is powered by our DE-204 series closed cycle cryocooler. With twice the 4K cooling power of the DE-202 cryocooler, the base temperature of this system is much more forgiving of experimental and parasitic sources of heat load.

Applications

• Optical

• Electro-optical

• Raman

• UV, VIS, IR

• FTIR

• Electroluminescence

• Photoluminescence

• Resistivity

• Hall probe experiments

• Diamond anvil cell

• Deep-level transient spectroscopy (DLTS)

• Thermal, electrical and magnetic susceptibility

• Magneto-optical Kerr effect (MOKE)

Typical Configuration

• Cold head (DE-204AI)

• Compressor (ARS-4HW)

• 2 helium hoses

• Stainless steel vacuum shroud with 5 window ports for optical and electrical experiments (FMX-1SS)

• Nickel plated OFHC copper radiation shield

• 2 high purity quartz windows

• Instrumentation for temperature measurement and control:

  • 10 pin hermetic feedthrough

  • 36 ohm thermofoil heater

  • Silicon diode sensor curve matched to (± 0.5 K) for control

  • Calibrated silicon diode sensor (±12 mK) with 4 in. free length for accurate sample measurement

• Wiring for electrical experiments:

  • 10 pin feedthrough

  • 4 copper wires

• Sample holder for optical and electrical experiments

• Temperature controller

Features

• Cryogen free GM cryocooler

• Welded stainless steel construction

• Large, clear view optical windows (1.25 in.)

• Large sample viewing angle for optical collection (F/# = 1)

• Fully customizable

 Options & Upgrades

• 4 K cold head (0.2 W @ 4.2 K)

• 5.5 K cold head (3 W @ 10 K)

• Turbo upgrade for faster cooldown times

• 450 K high temperature interface

• 800 K high temperature interface

• Custom temperature sensor configuration (please contact our sales staff)

• Custom wiring configurations (please contact our sales staff)

• Window material upgrades (custom materials available)

• Sample holder upgrades (custom sample holders available)
